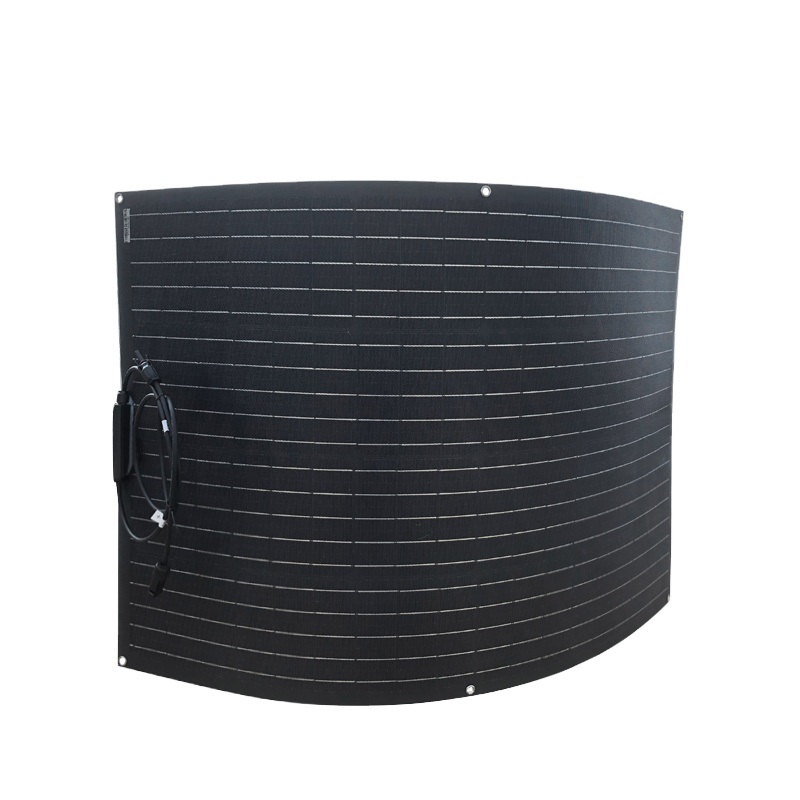

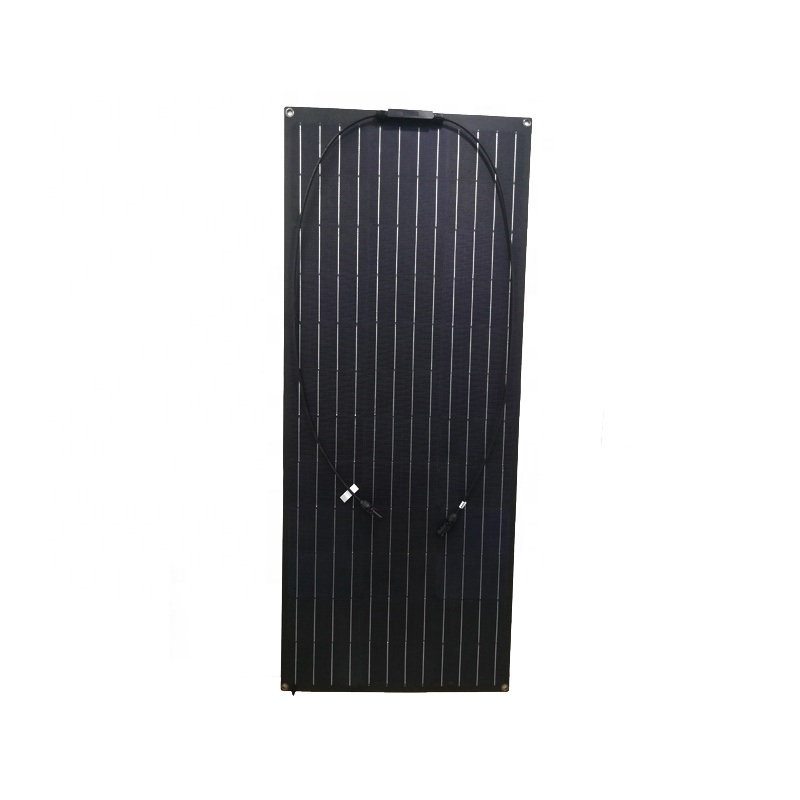

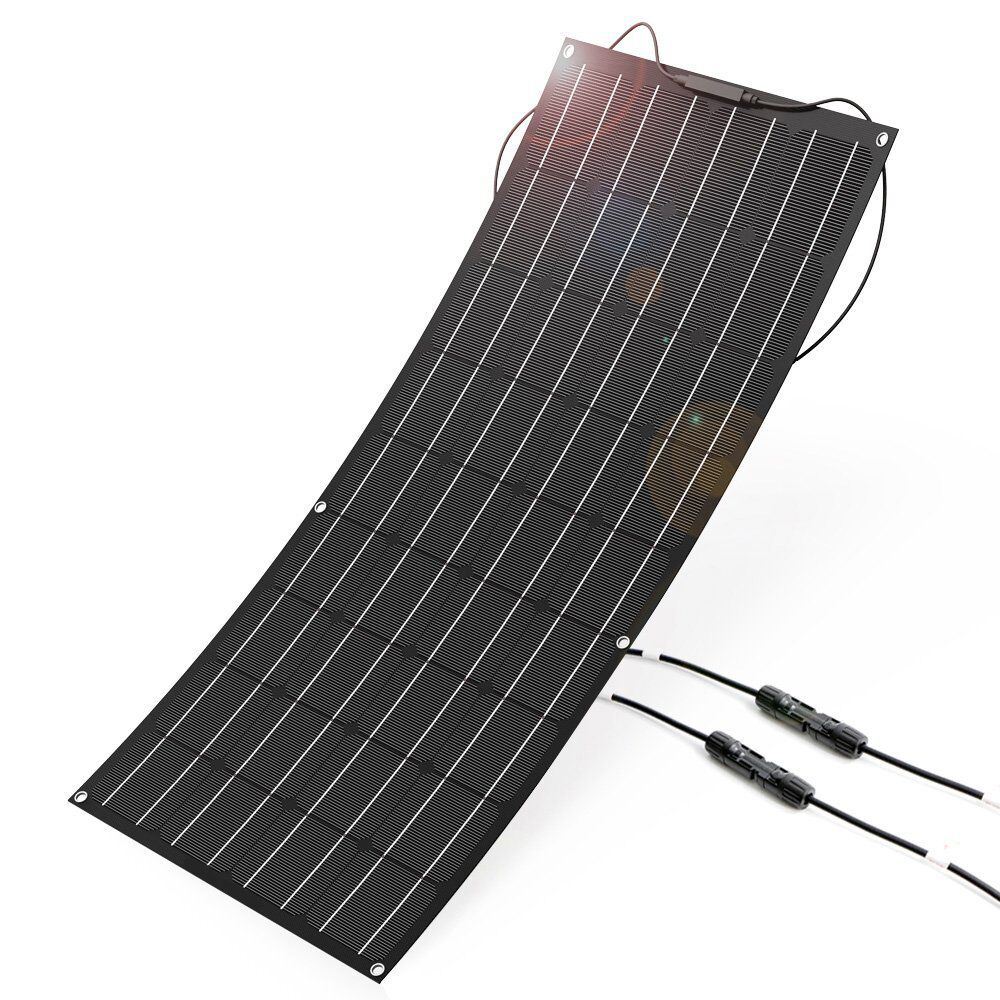

100w Flexible Mono Solar Panel

Maximum power at STC(Pmax):100W
Optimum Operating Voltage(Vmp):18V
Optimum Operating Current(Imp):5.56A
Open-Circuit Voltage(Voc):22.32V
Short-Circuit Current(Isc):5.78A
Product size:1219x546x2mm
Weight:1.8kgs
Numbers of cells:36pcs
Solar cell type:Monocrystalline:166*166mm
Panel Efficiency:19-21%
Backsheet material:TPT
Cable:90cm with connector
Net weight:1.7KGS
Temperature:-40ºC to +80ºC
Cell Efficiency rate:20%-23%

Model:RPF100W

Send Inquiry

Product Description

1. Product Introduction of 100w Flexible Mono Solar Panel

This 100w Flexible Mono Solar Panel used the high effeciency MONO PERC solar cells and surface is high transmittance ETFE, backside is high waterproof PET. The ETFE material has higher light transmittance and longer service life than ordinary materials. ETFE materials ensure the best performance day after day.

2. Product Feature And Application of 100w Flexible Mono Solar Panel

1.High efficiency: The efficiency of Mono crystalline solar panel is up to 19%--21%, so it can capture more sunlight than conventional solar panels which is 15% or even lower.

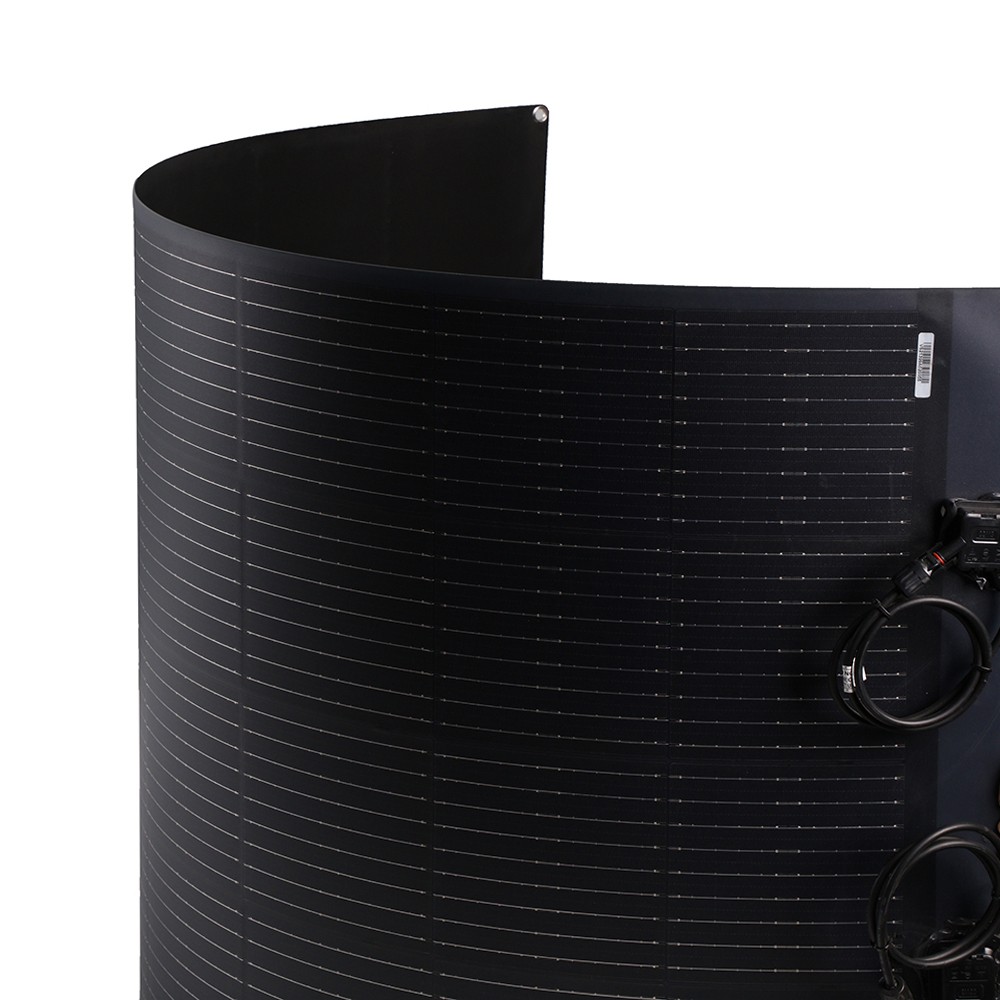

2.Flexible and convenient: It can be curved to a maximum 30 degree arc, which makes it ideal for storage in tight spaces or crowded areas, easier to transport, hang and install.

3.Durable: The water resistant flexible solar panel is far more durable than traditional glass and aluminum models; The junction box is sealed and waterproof

4.Safety Protection: Short circuit and surge protection technology keep you and your devices safe.

5.Widely compatible: Applicable for RV, boat, cabin, tent, yachts, car, trucks, trailers, etc

3. Product Details of 100w Flexible Mono Solar Panel

4. Deliver,Shipping And Serving of 100w Flexible Mono Solar Panel

Delivery time: Quantity (Pieces)1-50 pcs :15 working days after receiving payment

Quantity (Pieces): Bulk qty , need to be negociated

Serving : 100% product quality protection ,100% on-time shipment protection

5. FAQ

Q1. What is the material of the solar panel?

A: We now produce with 2 kinds solar cells, one is mono perc, the other is imported sunpower.

Q2. What is the different of mono and poly?

A2: The cells conversion efficiency is different the mono perc cells is higher than the poly cells, the newest mono perc cells is more than 23%, poly is 18.6% , so mono panel can get more output power.

Q3. Are you manufacturer or trading company?

A3: We are manufacturer.

Q4. What is your terms of packing?

A4: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes .

Q5:What is the lead time :

A5: Sample is 10 working days ,bulk qty production time within 30 days.

Q6:Can you offer OEM or ODM services ?

A6: Sure.We have own R&D team , we can do customised products according to customers requiments.

Q7: Do you have detailed and professional installation manual?

A7: Yes ,each products we will have the manual and operation details.

Q8:Do you provide sample? Free or charge?

A8: Yes, We can supply the sample, but the customers have to pay the sample cost and the courier cost.

Q9: What is your payment terms?

A9: 30% TT advance and balance before shipment. TT, LC, Western Union, Paypal are all accepted.
