Maximum Power (Pmax):140W
Max Power Voltage(Vmp):18.4V
Max Power Current(Imp):7.61A
Open-Circuit Voltage(Voc):22.68V
Short-Circuit Current(Isc):7.92A
Operating Temperature:-40ºC to +85 ºC
Maximum System Voltage:1000VDC
Power Tolerance:±5%
Nominal Operating Cell Temp (NOCT):45±2ºC
Frame:Aluminium alloy

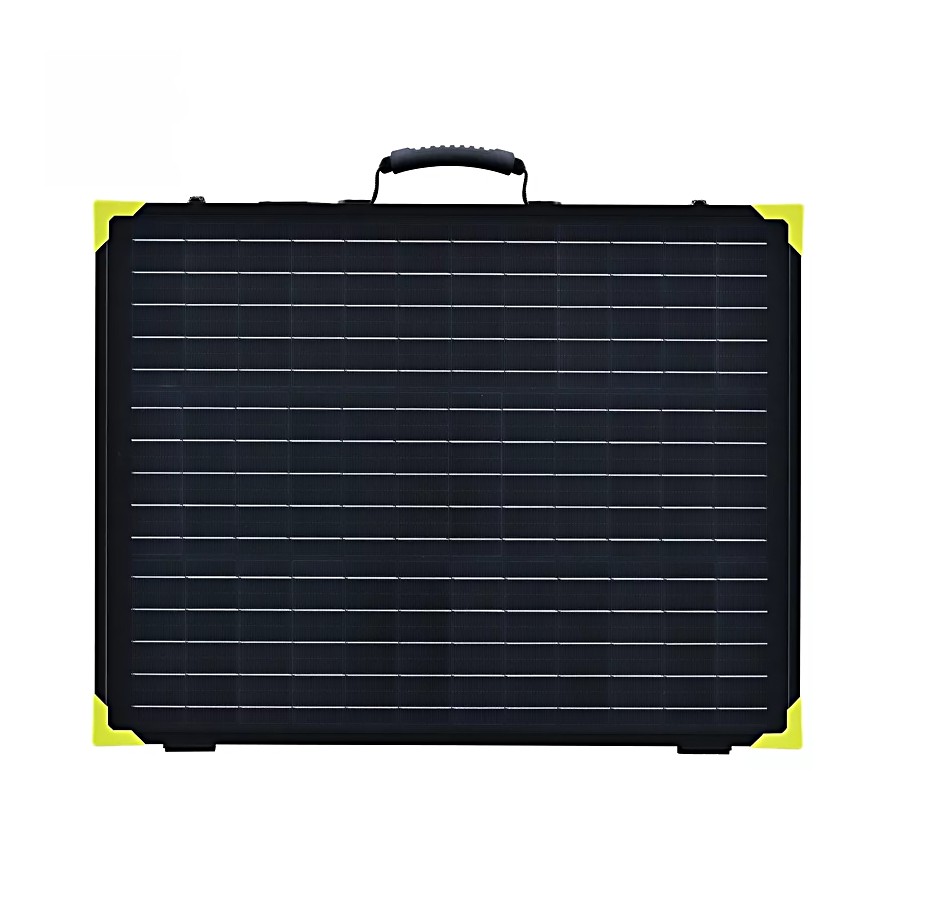

You can rest assured to buy customized Off Grid Solar foldable panel from us. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time! This folding solar panel is made of A grade monocrystalline solar cells, feature the fastest charging speed possible and conversion efficiency of 23%, using the wear proof, shock proof and high light transmittance tempered glass , also with the aluminium alloy frame and KPK backsheet . It is portable and durable .With handle , convenient to carry. Ideal for hiking, camping, ,caravan, RV, boat, Green house solar panel system, solar pump watering system ,off-grid solar panel system etc.
1. 100W foldable sunpower solar panel is a ready-to-use plug and plays portable solar solution. You just require folding up the solar panel and face its solar surface directly to the sun.
2. Pre-installed controller and pre-wired for 12V DC system charging, you don't have to add an extra controller.
3. The plug and play system quickly starts to generate energy and you can use it to power up any 12V system.
4. Compatible with gel, sealed, Lithium, and flooded batteries. Charge controller with LCD display for displaying operating Information and data, as well as provides overcharge protection ,reducing fire risk.
5. Accessories: controller(20A) , cable (5m), alligator clips, supporting leg,carry bag, junction box,black plastic corner protection, lock and handle
Delivery time: Quantity (Pieces)1-50 pcs :15 working days after receiving payment
Quantity (Pieces): Bulk qty , need to be negociated
Serving : 100% product quality protection
100% on-time shipment protection
A: Sample is 15 working days ,bulk qty production time need to negociated by both party.
A: Sure.We have own R&D team , we can do customised products according to customers requiments.
A: Yes,IP67 rated for junction box,but do not expose it to constant rain or snow.
A: Yes ,each products we will have the manual and operation details.
A:Yes , we can provide the paid samples.
