Maximum power at STC(Pmax):185W
Max Power Voltage(Vmp):19.9V
Max Power Current(Imp):9.3A
Open-Circuit Voltage(Voc):24.1V
Short-Circuit Current(Isc):9.78A
Product size:1520x680x2mm
Weight:3.5kgs
Numbers of cells:36pcs

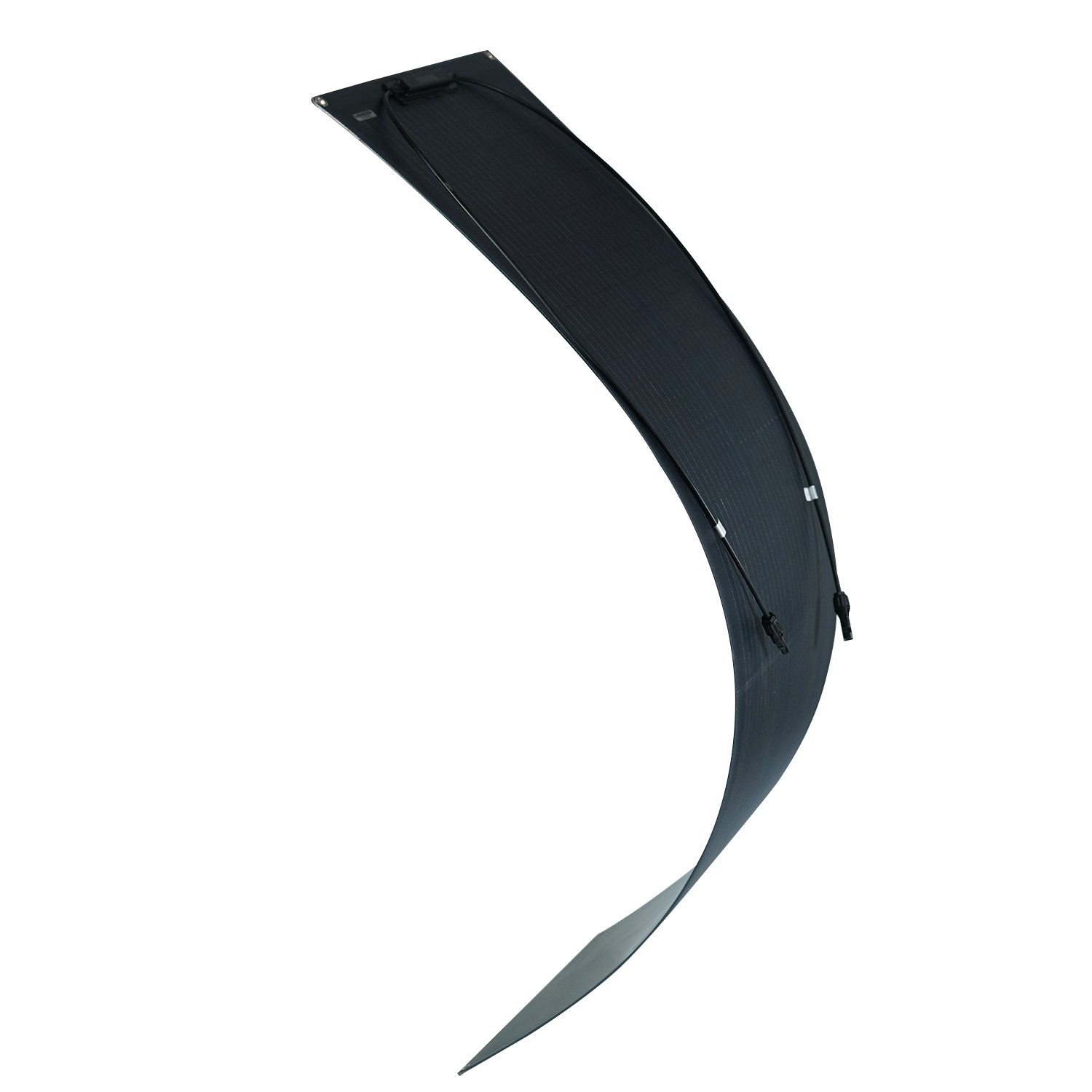

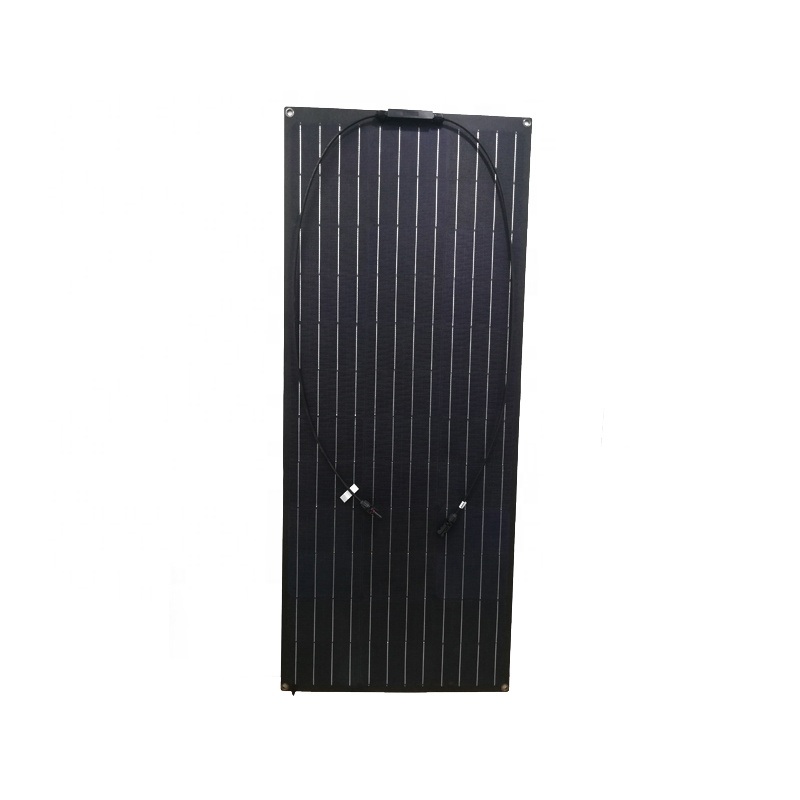

This 185w Flexible Mono Solar Panel used the high effeciency MONO PERC solar cells and surface is high transmittance ETFE, backside is high waterproof PET. The ETFE material has higher light transmittance and longer service life than ordinary materials. ETFE materials ensure the best performance day after day.
1.High efficiency: The efficiency of Mono crystalline solar panel is up to 19%--21%, so it can capture more sunlight than conventional solar panels which is 15% or even lower.

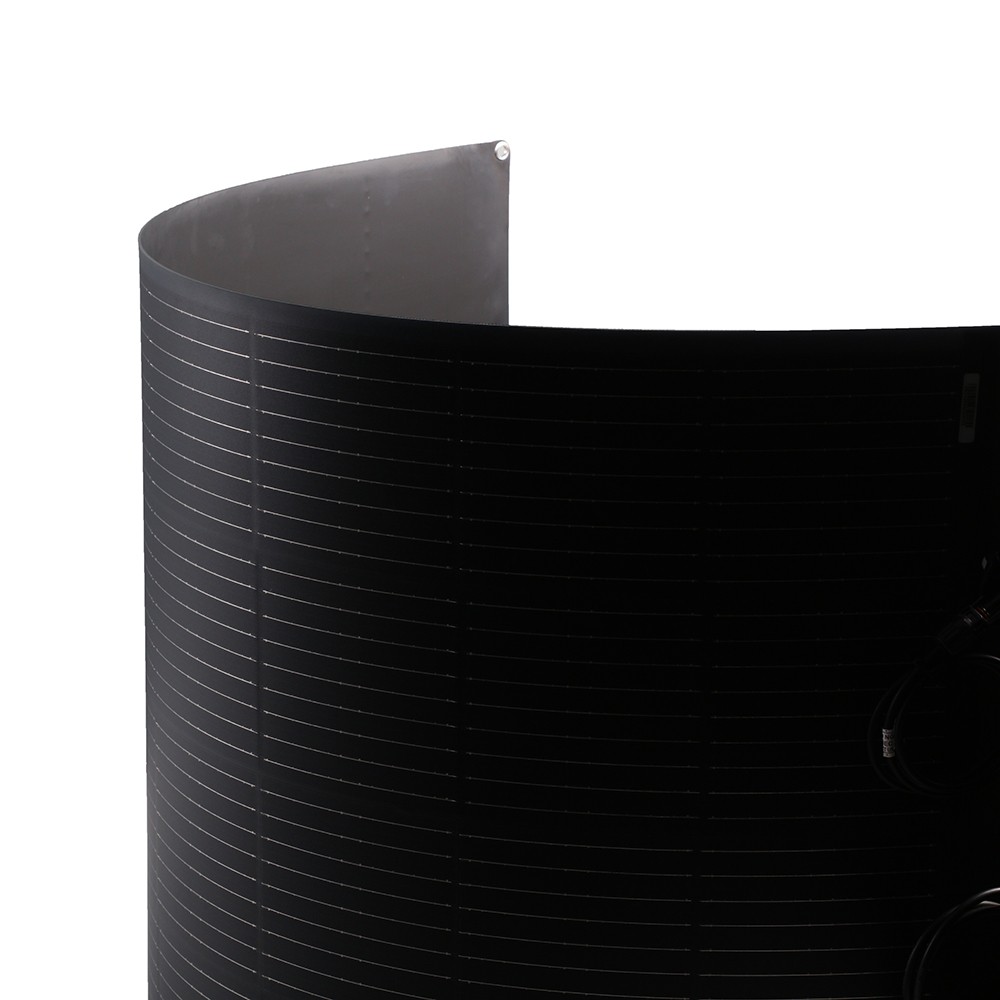

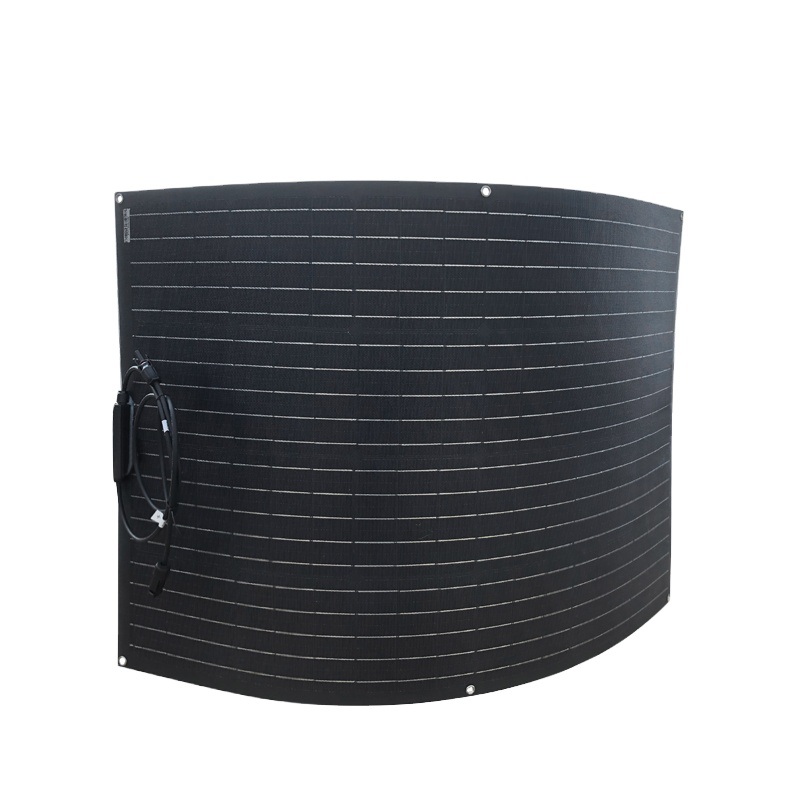

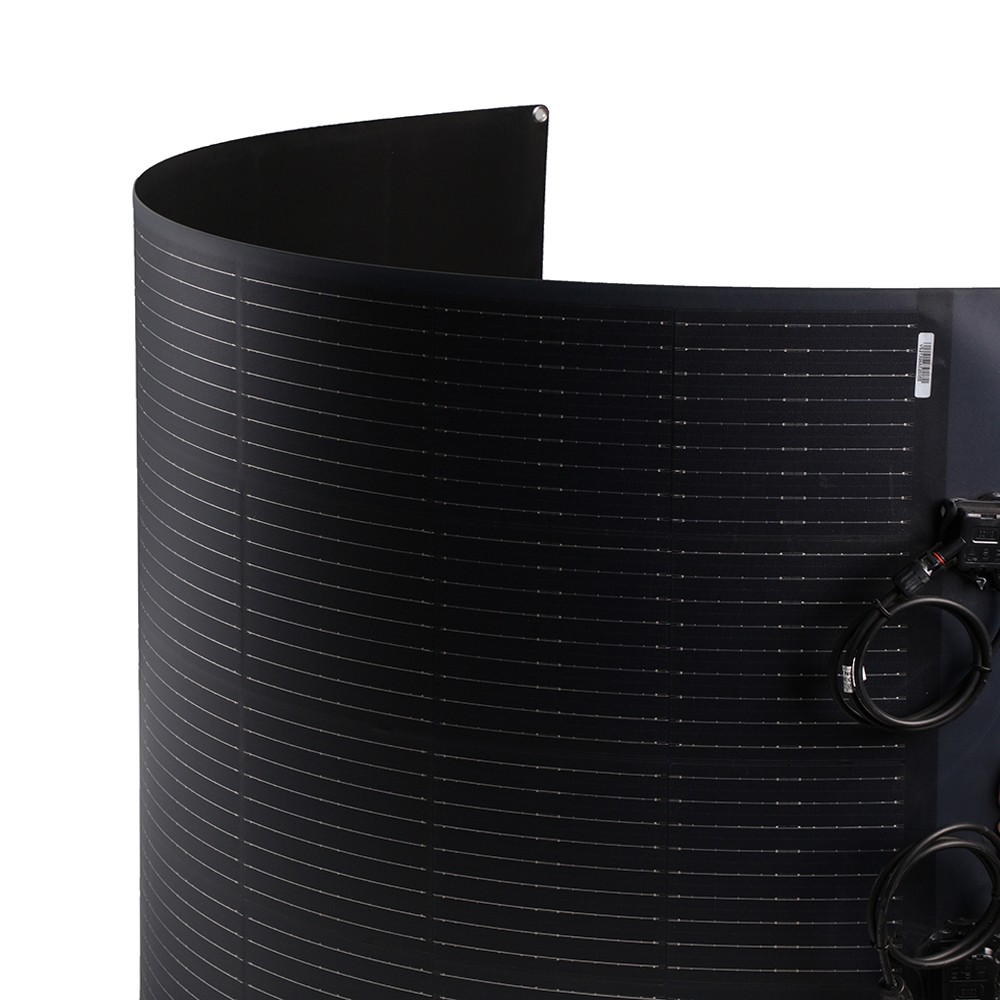

2.Flexible and convenient: It can be curved to a maximum 30 degree arc, which makes it ideal for storage in tight spaces or crowded areas, easier to transport, hang and install.
3.Durable: The water resistant flexible solar panel is far more durable than traditional glass and aluminum models; The junction box is sealed and waterproof
4.Safety Protection: Short circuit and surge protection technology keep you and your devices safe.
5.Widely compatible: Applicable for RV, boat, cabin, tent, yachts, car, trucks, trailers, etc
Delivery time: Quantity (Pieces)1-50 pcs :15 working days after receiving payment
Quantity (Pieces): Bulk qty , need to be negociated
Serving : 100% product quality protection ,100% on-time shipment protection
A: We now produce with 2 kinds solar cells, one is mono perc, the other is imported sunpower.
A2: The cells conversion efficiency is different the mono perc cells is higher than the poly cells, the newest mono perc cells is more than 23%, poly is 18.6% , so mono panel can get more output power.
A3: We are manufacturer.
A4: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes .
A5: Sample is 10 working days ,bulk qty production time within 30 days.
A6: Sure.We have own R&D team , we can do customised products according to customers requiments.
A7: Yes ,each products we will have the manual and operation details.
A8: Yes, We can supply the sample, but the customers have to pay the sample cost and the courier cost.
A9: 30% TT advance and balance before shipment. TT, LC, Western Union, Paypal are all accepted.
