Foldable Mono Perc Solar Panel Manufacturers

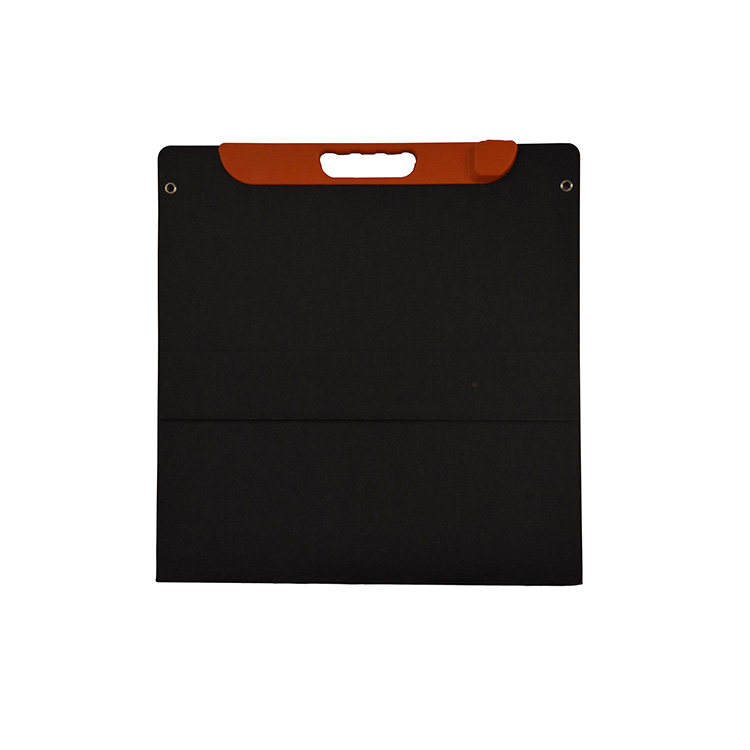

Product Name:200w Foldable Solar Blanket
Model No.: RP-FM200-M10
Maximum Power(Pmax): 200W
Maximum Power Voltage(Vmp): 19.8V
Maximum Power Current(Imp):10.2A
Open Circuit Voltage(Voc): 22.4V
Short Circuit Voltage(Isc) :11.2A
Cell: Monocrystalline PERC
Accessories: 1. PMW controller x1(MPPT for your option)
2. 5m cable with Anderson or MC4 connector x1
3. 30cm cable of alligator clip with Anderson connector x1
4. Carry bag x1
5. User Manual x1

Wattage：200W
Working max. voltage：18.80V
Working max. current：10.68A
Open circuit：22.80V
Short circuit：11.47A
Dimensions (folded)：350mm x 375mm x 70mm
Dimensions (unfolded)：1545mm x 1010mm
Weight：7.0kg (excl. controller & cables)
Operating temperature：-40°C to 85°C

Maximum Power (Pmax/w)：545
Open Circuit Voltage (Voc/V)：49.75
Short Circuit Current (lsc/A)：13.93
Voltage at maximum Power (Vmp/V)：41.80
Current at Maximum Power (Imp/A)：13.04
Module Efficiency (%)：21.10

Maximum Power (Pmax):100W
Optimum Operating Voltage(Vmp):18.4V
Optimum Operating Current(Imp):5.43A
Open-Circuit Voltage(Voc):22.6V
Short-Circuit Current(Isc):5.72A
Operating Temperature:-40ºC to +85 ºC
Maximum System Voltage:1000VDC
Power Tolerance:±5%
Nominal Operating Cell Temp (NOCT):45±2ºC
Frame:Aluminium alloy
Open size:1100x686x35.5mm(43.3x27x1.4in)
Folding size:710x510x65mm(22x27x2.8in)
Net weight:9.75KGS
Cell Type:Monocrystalline
Cell Efficiency rate:20%-23%
Junction Box:Ip65 rated

Product Name:500WH Solar Power Station
Model No.:RP-500WH
Battery type:Ternary lithium battery
Battery Capacity:500Wh (11.8 V 45Ah)
LED Light: 1W Charging cycle times:≥800times
Output wareform:Sine wave output
AC Rated Power:300 W (Pure Sine Wave)
Instant Peak Power:1000W
USB-A:10W QC3.0 *2
DC Port:12V 2.5A *4

Product Name:130w Sunpower Solar Panel
Maximum Power(Pmax): 130W
Maximum Power Voltage(Vmp): 22V
Maximum Power Current(Imp):5.91A
Open Circuit Voltage(Voc): 26.4V
Short Circuit Voltage(Isc) :6.35A
Cell: Sunpower
